Mini Excavator

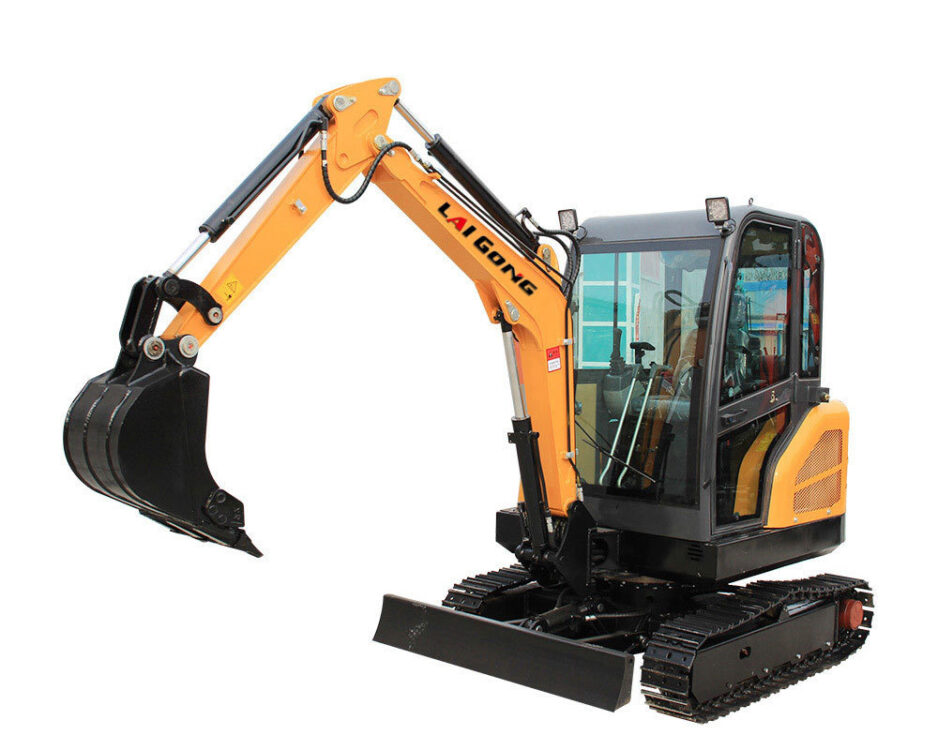

LG35E Mini Excavator

Rated load
3400kg
Bucket capacity
0.12m³
Engine power
36.8kw-2300rpm

Overview

The LG35E is a mini excavator built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a rated load of 3400kg, a 0.12m³ bucket and 36.8kw-2300rpm of engine power.

Highlights

  • Our mini excavators have passed ISO, CE, EPA, and EAC certification and a variety of engine brands and emission standards to adapt to different markets around the world have been exported to many countries around the world.
  • its volume is smaller than that of traditional excavators, its fuel consumption is also reduced.It is convenient to transport and transfer the operation situations.
  • The use of the world's leading brands of hydraulics and pumps and valves to ensure the stability of the operation.
  • Mini excavators are low in price, light in weight, flexible in operation and convenient in maintenance, and are very suitable for urban construction, various pipeline excavation and public facilities construction.
  • Various attachments optional for different applications.

Built for export

Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.

Specifications

Model LG35E
Rated load 3400kg
Bucket capacity 0.12m³
Engine power 36.8kw-2300rpm
Engine LaigongKM490
Max lifting height 420mm
Breakout force 22KN
Turning radius 2330mm
Overall size (L x W x H) 4700mm x 1700mm x 2450mm
Crawler length 2200mm
Chasis width 1600mm
Standard bucket width 650mm
Max.digging depth 3050mm
Max.digging height 4500mm
Max.dumping height 3000mm
Max.digging radius 5100mm
Max.digging distance 3600mm
Blade fallinig depth 250mm
Working pressure 22Mpa
Main pump 32mL/r
Gradeability 35°
Operation mode Pilot hydraulic control
