Mini Excavator

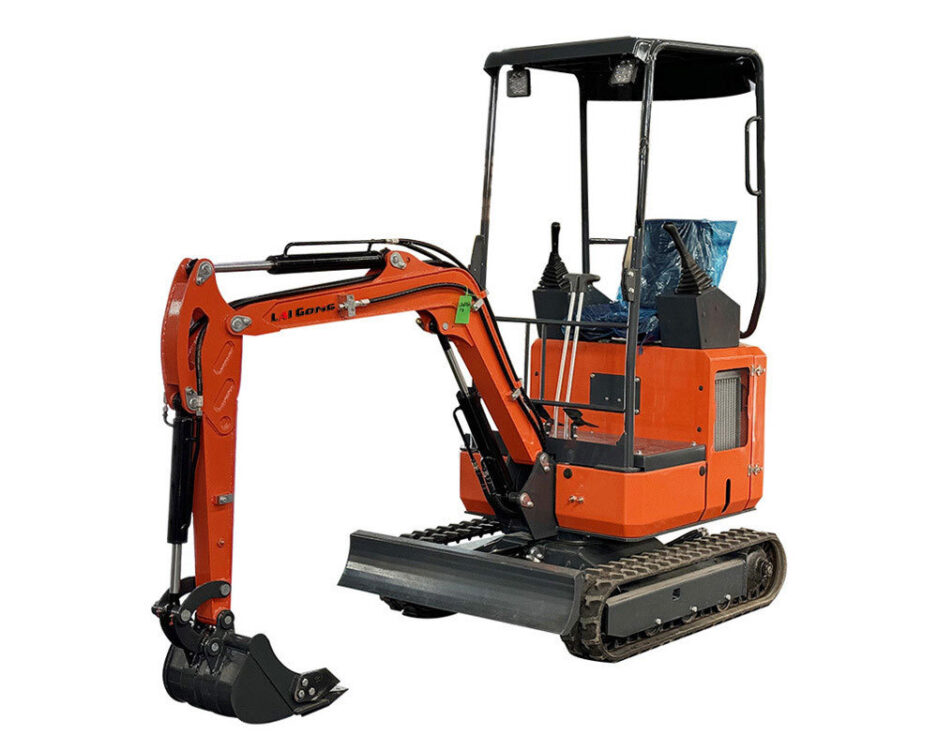

LG15E Mini Excavator

Rated load
1200kg
Bucket capacity
0.03m³
Engine power
18.1kw-2200rpm

Overview

The LG15E is a mini excavator built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a rated load of 1200kg, a 0.03m³ bucket and 18.1kw-2200rpm of engine power.

Highlights

  • Our mini excavators have passed ISO, CE, EPA, and EAC certification and a variety of engine brands and emission standards to adapt to different markets around the world have been exported to many countries around the world.
  • its volume is smaller than that of traditional excavators, its fuel consumption is also reduced.It is convenient to transport and transfer the operation situations.
  • The use of the world's leading brands of hydraulics and pumps and valves to ensure the stability of the operation.
  • Mini excavators are low in price, light in weight, flexible in operation and convenient in maintenance, and are very suitable for urban construction, various pipeline excavation and public facilities construction.
  • Various attachments optional for different applications.

Built for export

Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.

Specifications

Model LG15E
Rated load 1200kg
Bucket capacity 0.03m³
Engine power 18.1kw-2200rpm
Engine LaigongKM385
Max lifting height 190mm
Breakout force 11KN
Turning radius 1700mm
Overall size (L x W x H) 3380mm x 1080mm x 2200mm
Crawler length 1360mm
Chasis width 1080mm
Standard bucket width 400mm
Max.digging depth 2000mm
Max.digging height 2850mm
Max.dumping height 1900mm
Max.digging radius 3600mm
Max.digging distance 2800mm
Blade fallinig depth 140mm
Working pressure 18Mpa
Main pump 10+4mL/r
Gradeability 30°
Operation mode Pilot hydraulic control
