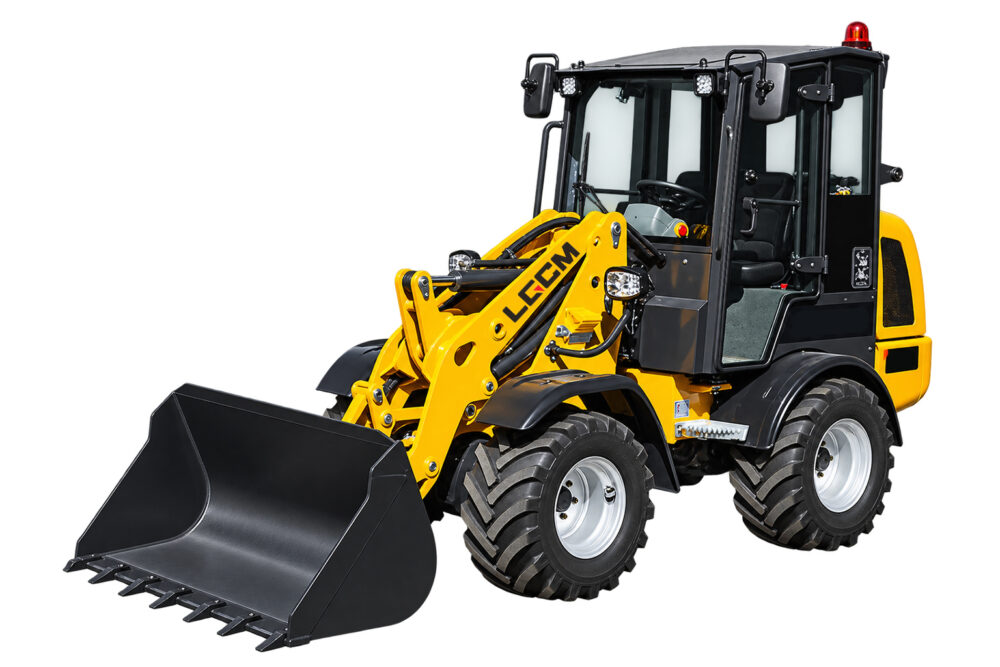

3000 kg compact hydrostatic loader with 1500 kg max lifting capacity and 18.5 kW engine power.
The LG28 is a hydrostatic loader built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a max lifting capacity of 1500 kg, 18.5 kW of engine power and an operating weight of 3000 kg.
Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.
| Model | LG28 |
|---|---|
| Operating weight | 3000 kg |
| Engine power | 18.5 kW |
| Engine | ANMAR 4TNV88-BIGE |
| Emission standard | EU Stage V |
| Drive | Hydrostatic |
| Max lifting height | 2950 mm |
| Turning radius | 1600/3120 mm |
| Travel speed | 0~25 km/h |
| Fuel type | Diesel |
| Cylinders | 4 |
| Displacement cc | 2190 |
| Max engine torque Nm | 141@1500rpm |
| Cooling system | Water |
| Operating voltage V | 12 |
| Battery Ah | 75 |
| Tipping load ,max kg | 1700 |
| Steering angle ° | 45 |
| Tire size | 10.0/75-15.3 / 31/15.5-15 |
| Fuel tank capacity l | 60 |
| Hydraulic oil tank capacity l | 50 |
| Working hydraulic flow l/min | 60 |
| Working hydraulic pressure bar | 200 |
| Height × Width mm | 2395×1450( Tire size: 10.0/75-15.3) / 2400×1198( Tire size:31/15.5-15) |
Required configuration step
Accessory selection is completed in Build your machine so compatibility, pricing, job requirements and contact details stay in one configuration.
Tell us the port, the quantity and the jobs the machine has to do. We reply within one working day with a price and lead time.
Enquiry about: LG28 Hydrostatic Loader
EPA Hydrostatic Loader
EPA Hydrostatic Loader
Tell us the machine, the port and the quantity. We reply within one working day.
