350 kg max lifting capacity compact hydrostatic loader with 700 kg operating weight and 20 hp max engine output.

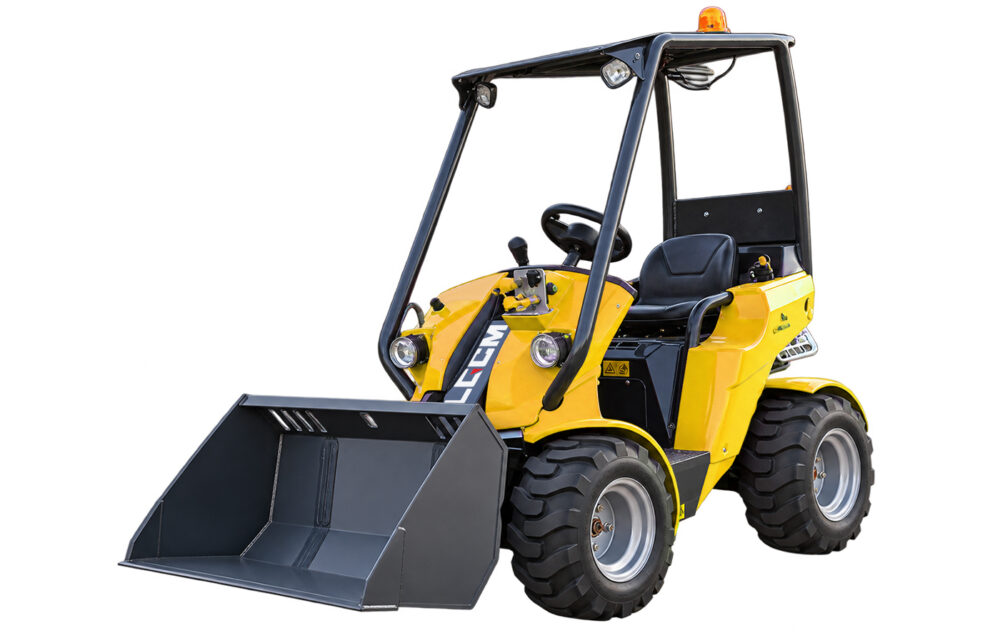

The LG14 is a hydrostatic loader built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a max lifting capacity of 350kg, 20@3600 rpm of max engine output and an operating weight of 700kg.
Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.
| Model | LG14 |
|---|---|
| Operating weight | 700 kg |
| Engine power | 20 kW |
| Engine | Loncin LC2V80FD |
| Drive | Hydrostatic |
| Max lifting height | 1400 mm |
| Turning radius | 800/2000 mm |
| Travel speed | 0~20 km/h |
| Emission standard | EU Stage V / EPA Tier 4 Final |
| Fuel type | Gasoline |
| Cylinders | 2 |
| Displacement cc | 764 |
| Max engine torque Nm | 52@2800 rpm |
| Cooling system | Air |
| Operating voltage V | 12 |
| Battery Ah | 45 |
| Tipping load ,max kg | 500 |
| Steering angle ° | 45 |
| Tire size | 20x10.00-10 |
| Fuel tank capacity l | 15 |
| Hydraulic oil tank capacity l | 23 |
| Working hydraulic flow l/min | 20/40（Optional） |
| Working hydraulic pressure bar | 180 |
| Height × Width mm | 1880×1042 |
