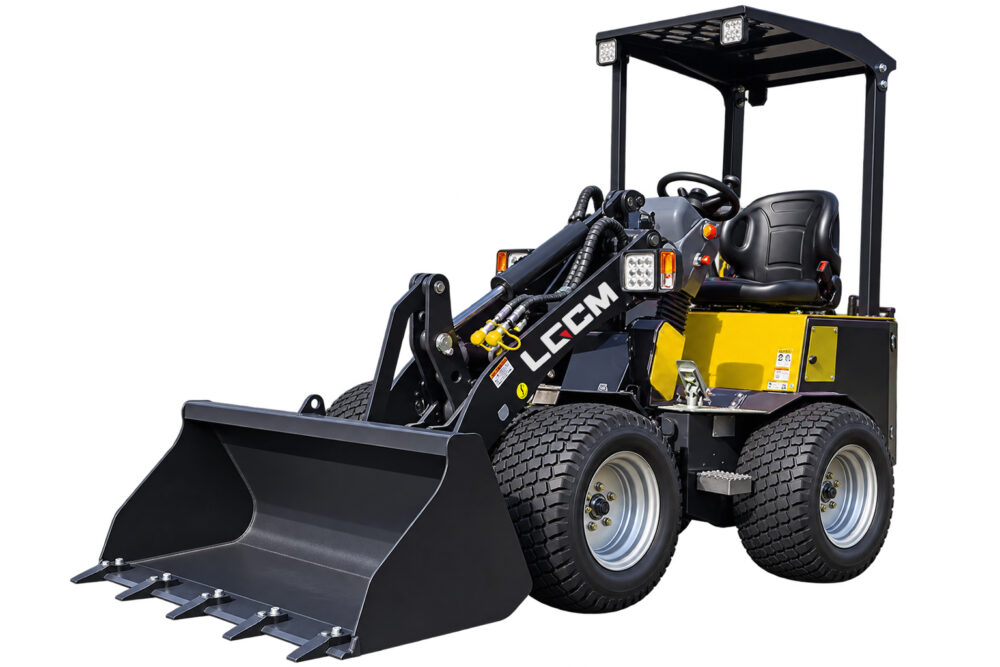

1300 kg compact hydrostatic loader with 800 kg max lifting capacity and 17.8 kW engine power.
The LG16 is a hydrostatic loader built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a max lifting capacity of 800 kg, 17.8 kW of engine power and an operating weight of 1300 kg.
Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.
| Model | LG16 |
|---|---|
| Operating weight | 800 kg |
| Engine power | 17.8 kW |
| Engine | YANMAR 3TNV76-KYT |
| Drive | Hydrostatic |
| Max lifting height | 1920 mm |
| Turning radius | 940/2030 mm |
| Travel speed | 0~20 km/h |
| Emission standard | EU Stage V & EPA Tier 4 Final |
| Fuel type | Diesel |
| Cylinders | 3 |
| Displacement cc | 1116 |
| Max engine torque Nm | 62.7~68.4@1800rpm |
| Cooling system | Water |
| Operating voltage V | 12 |
| Battery Ah | 75 |
| Tipping load ,max kg | 1000 |
| Steering angle ° | 45 |
| Tire size | 23x8.50-12NHS-4TL |
| Fuel tank capacity l | 40 |
| Hydraulic oil tank capacity l | 50 |
| Working hydraulic flow l/min | 40 |
| Working hydraulic pressure bar | 200 |
| Height*Width | 2200*1120 |
