2600 kg compact hydrostatic loader with 1200 kg rated load and 18.5/36.5 kW engine options.

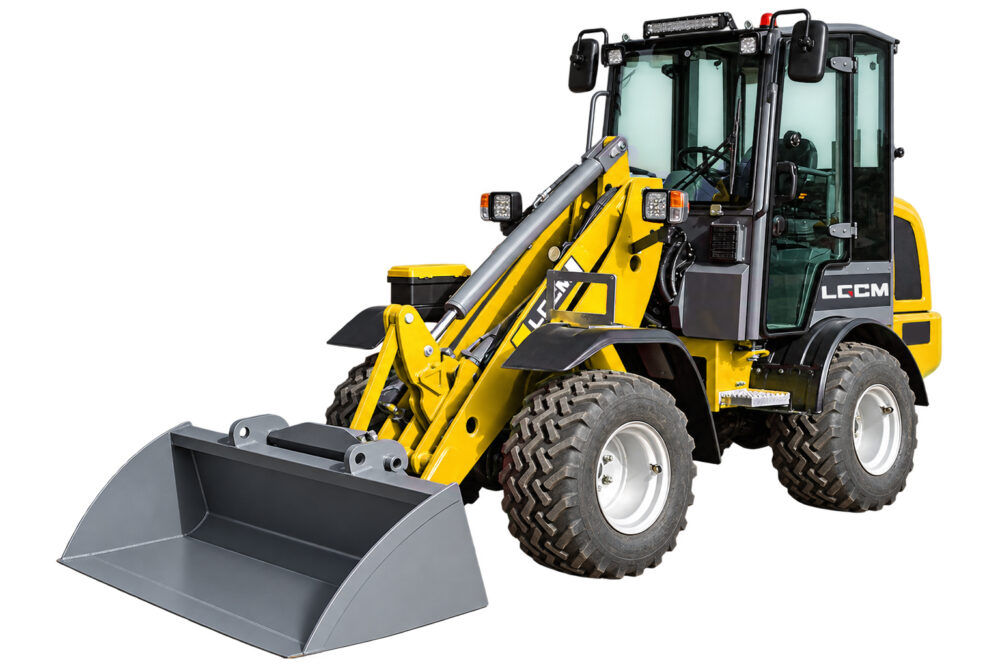

The LG22 is a hydrostatic loader built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a max lifting capacity of 1200 kg, 18.5@1500rpm of engine power and an operating weight of 2600 kg.
Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.
| Model | LG22 |
|---|---|
| Operating weight | 2600 kg |
| Engine power | 18.5 kW |
| Engine | Yanmar 4TNV88-BIGE |
| Emission standard | EU Stage V |
| Drive | Hydrostatic |
| Max lifting height | 2600 mm |
| Turning radius | 1410/3025 mm |
| Travel speed | 0~25 km/h |
| Fuel type | Diesel |
| Cylinders | 4 |
| Displacement cc | 2190 |
| Max engine torque Nm | 141@1500rpm |
| Cooling system | Water |
| Operating voltage V | 12 |
| Battery Ah | 75 |
| Tipping load ,max kg | 1500 |
| Steering angle ° | 45 |
| Tire size | 10.0/75-15.3 / 31/15.5-15 |
| Fuel tank capacity l | 50 |
| Hydraulic oil tank capacity l | 50 |
| Working hydraulic flow l/min | 40 |
| Working hydraulic pressure bar | 200 |
| Height × Width | 2395×1450( Tires size: 10.0/75-15.3) / 2400×1198( Tires size: 31/15.5-15) |
Required configuration step
Accessory selection is completed in Build your machine so compatibility, pricing, job requirements and contact details stay in one configuration.
Tell us the port, the quantity and the jobs the machine has to do. We reply within one working day with a price and lead time.
Enquiry about: LG22 Hydrostatic Loader
