LGB88 Backhoe Loader

Backhoe Loader

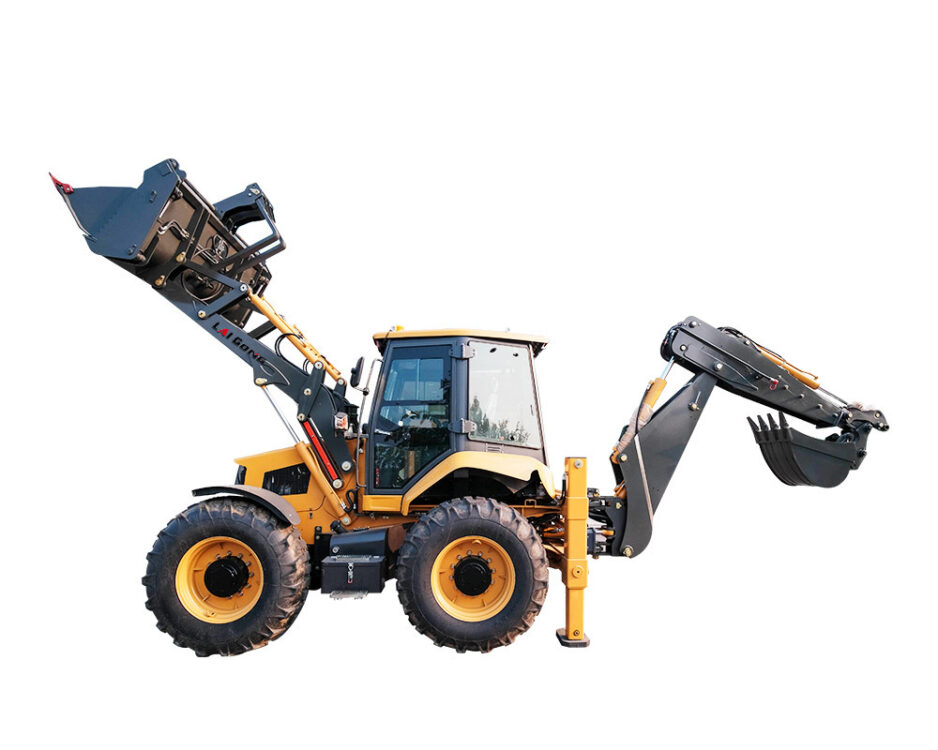

LGB88 Backhoe Loader

Bucket capacity
1.2m³
Engine power
75KW
Operating weight
10400KG
Request a quote Configure requirements

Overview

The LGB88 is a backhoe loader built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a 1.2m³ bucket, 75KW of engine power and an operating weight of 10400KG.

Highlights

  • Enhance the passability of complex terrain
  • Improve the flexibility of narrow space operations
  • Optimize construction efficiency and safety

Built for export

Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.

Specifications

Model LGB88
Bucket capacity 1.2m³
Operating weight 10400KG
Engine power 75KW
Engine Yuchai YC4A105Z-T20
Breakout force 47KN
Turning radius 6950mm
Travel speed 36Km/h
Overall dimension(L×W×H) 6450×2530×3120mm
Overall dimension Wheel base 2335mm
Overall dimension Wheel tread 2050mm
Overall dimension Ground clearance 450mm
Performance Loader lifting capacity 2500KG
Performance Loader Dumping height 3050mm
Performance Loader Dumping reach 870mm
Performance Loader digging depth 52mm
Performance Backhoe bucket capacity 0.3m³
Performance Backhoe bucket digging force 50KN
Performance Backhoe swing angle 180°
Performance Backhoe dumping height 4050mm
Performance Backhoe max digging depth 3820mm
Performance Max. traction force 86KN
Engine Type Inline,direct injection,water-cooled,turbocharged,4-stroke
Engine Cylinder-Inner diameter*stroke 4-108×132
Engine Rated speed 2200r/min
Engine Min. fuel consumption 230g/kw.h
Engine Max. torque 400N.m
Engine Displacement 4.8L
Steering system Type hydraulic steering
Steering system Diverter model BZZ5-250
Steering system Pump delivery 63ml/r
Steering system Steering angle ±35°
Driving axle Model WZL100DF
Driving axle Max. load of front axle 13T
Driving axle Max. load of rear axle 13T
Transmission Gearbox Mechanically Operated Hydraulic Synchronized Shift
Transmission Model ZL15
Transmission Gears forward and 4 reverse gears
Transmission Hydraulic torque converter YJ320
Transmission Inlet pressure 0.4-0.65Mpa
Transmission Outlet pressure 1.6-1.9Mpa
Transmission Pump delivery 40ml/r
tyre Front/Rear model 16.9-28
Front tyre pressure 0.35Mpa
Rear tyre pressure 0.35MPa
Brake system Service brake Gas pushed oil, built-in-selfregulation,self-balance
Brake system Parking brake Manual brake
System pressure Loading hydraulic system 20Mpa
System pressure Digging hydraulic system 20Mpa
System pressure Steering hydraulic system 14Mpa

Required configuration step

Accessories and options

Accessory selection is completed in Build your machine so compatibility, pricing, job requirements and contact details stay in one configuration.

2 compatible options Continue to required accessory selection

Request a quote

Tell us the port, the quantity and the jobs the machine has to do. We reply within one working day with a price and lead time.

Enquiry about: LGB88 Backhoe Loader
