Standard Mini Wheel Loader

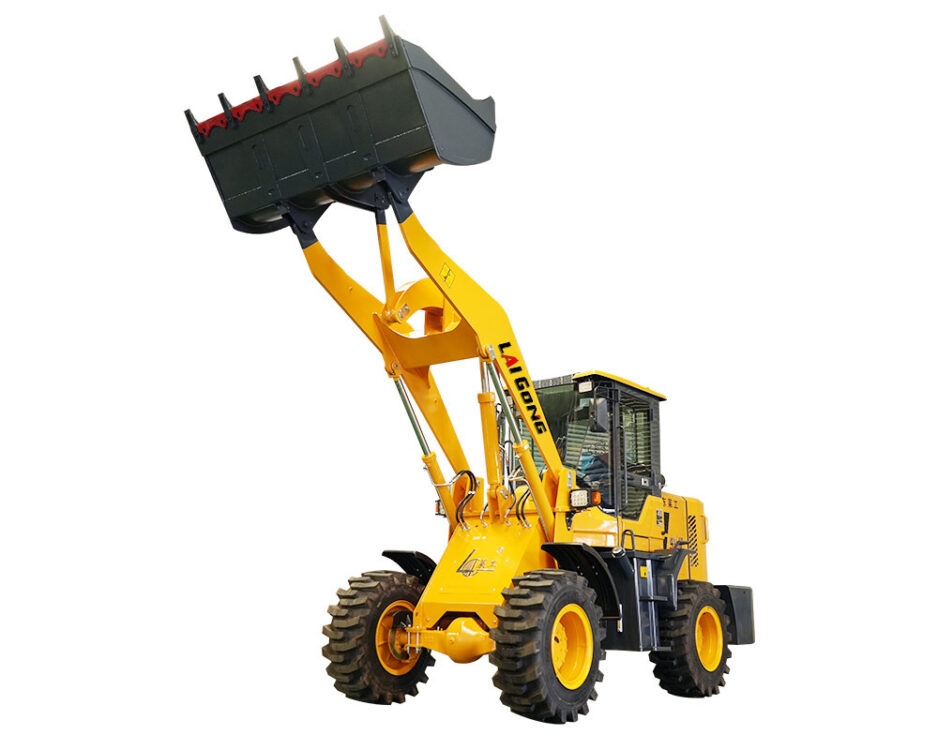

LG928 Mini Wheel Loader

Rated load
1600 KGS
Bucket capacity
0.8 m³
Engine power
42 KW
Operating weight
3900 KGS

Overview

The LG928 is a mini wheel loader built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a rated load of 1600 KGS, a 0.8 m³ bucket, 42 KW of engine power and an operating weight of 3900 KGS.

Highlights

  • The newest much cost creates a streamlined look, a diverse color spray,3M high-strength painting and marking system.
  • The same level of long wheelbase products, without affecting the flexibility of the operation, the joint operating conditions traction is large and it has a large capacity of digging and lifting, and a high stability of the whole machine.
  • The cooling system uses the aluminum plate-fin beat exchanger for low thermal balance temperature and high reliability.
  • Large-angled hood access door for easy maintenance.
  • With independent intellectual property rights, we have Planetary, countershaft, integrated, split and electronically controlled transmissions, to adapt to a variety of complex operating conditions and customer needs.
  • Optional boom slot sits up to 4500mm at unloading height to meet the needs of customers.
  • Hydraulic quick-change with the special whole machine platform equipped with wood grabber, straw grips, pallet fork, sweeper, Snow Plow etc. to meet the different requirements under different operating conditions.

Built for export

Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.

Specifications

Model LG928
Rated load 1600 KGS
Bucket capacity 0.8 m³
Operating weight 3900 KGS
Engine power 42 KW
Engine YUNNEI
Drive Torque converter
Max lifting height 4010 mm
Overall size (L x W x H) 5500 mm x 1800 mm x 2700 mm
General Machine Performance Wheel base 2200 mm
General Machine Performance Wheel track 1400 mm
General Machine Performance Tire size 20.5-16
Bucket Performance Bucket width 1800 mm
Bucket Performance Dumping height 3200 mm
Bucket Performance Dumping reach 700 mm
Engine Performance Number of cylinder 4
