Telescopic Boom Loader

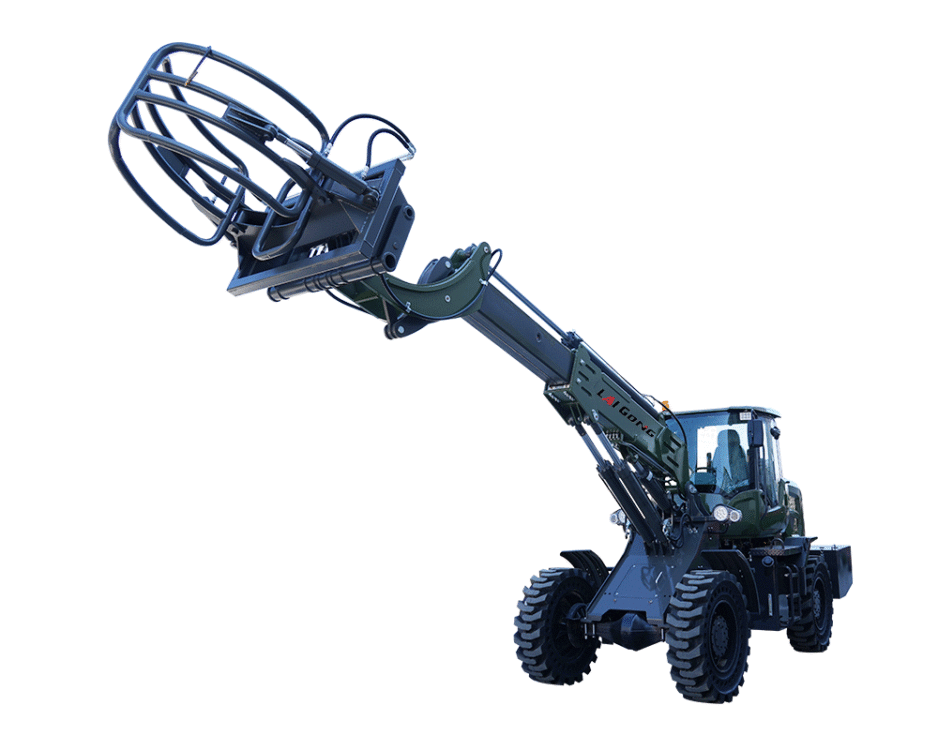

LG3000TL Telescopic Boom Loader

Rated load
1300
Engine power
85
Operating weight
6700

Overview

The LG3000TL is a telescopic boom loader built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a rated load of 1300, 85 of engine power and an operating weight of 6700.

Highlights

  • telescopic boom (7M 9M 11M ) for choice .
  • Its versatile telescopic boom allows for efficient material handling at various heights and distances, reducing the need for additional equipment.
  • Hydraulic pilot control, more precise work and more flexible operation delivers efficiency and precision.
  • Through solenoid valve control, single-handle operation does not require frequent movement of the position, and the single-button button of the compound handle can operate various actions, and can simultaneously complete the functions of the boom extension and retraction, bucket retraction and extension, and other different attachments to achieve linkage operation;

Built for export

Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.

Specifications

Model LG3000TL
Rated load 1300
Operating weight 6700
Engine power 85
Engine yudong 4105 turbo
Max lifting height 7000
Turning radius 5750
Overall size (L x W x H) 7350*2100*2900
overall dimension wheelbase(mm) 2780
overall dimension Track width(mm) 1700
overall dimension Minimum ground clearance(mm) 320
performance parameter maximum speed(km/h) 35
performance parameter gradeability 35
Loading telescopic arm parameters Maximum Dumping Height(mm) 4800
Loading telescopic arm parameters Maximum unloading distance(mm): 1550
Loading telescopic arm parameters Nearest/Far Unloading Distance(mm): 2250/3750
Loading telescopic arm parameters maximum load (kg) 3000
Loading telescopic arm parameters Bucket width(kg) 2200
bridge type large wheel edge
tire specifications 16/70-24
tire Brake Air top oil caliper disc brake
tire parking braking handbrake
Steering type Articulated full hydraulic steering
other Driving Type Four-wheel drive
