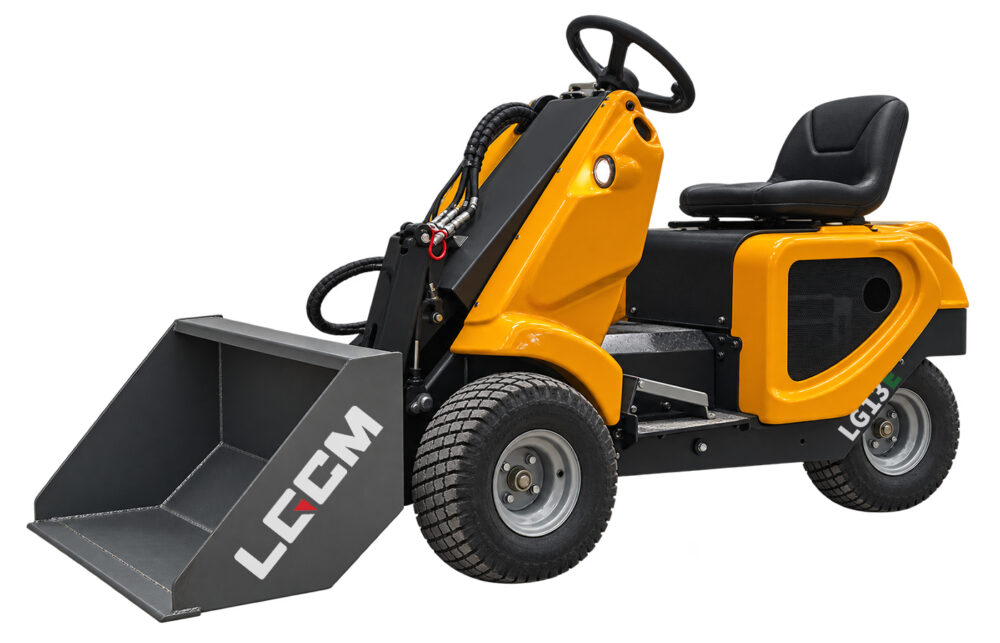

350 kg max lifting capacity compact electric loader with 500 kg operating weight.
The LG13E is a electric loader built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a max lifting capacity of 350kg and an operating weight of 500kg.
Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.
| Model | LG13E |
|---|---|
| Operating weight | 500 kg |
| Emission standard | Electric |
| Drive | Hydrostatic |
| Max lifting height | 1880 mm |
| Travel speed | 0~15 km/h |
| Battery Type | Ternary Lithium Battery |
| Battery capacity/kWh | 14 |
| Drive motor/kW | Shared with pump motor |
| Pump motor/kW | 10 |
| Charging voltage/V | 110/220 |
| Charging time/h | 2 |
| Operating voltage V | 48 |
| Battery Ah | 280 |
| Tipping load ,max kg | 400 |
| Steering angle ° | 0~360 |
| Tire size | 18x9.50-8 |
| Hydraulic oil tank capacity l | 15 |
| Working hydraulic flow l/min | 20 |
| Working hydraulic pressure bar | 160 |
| Height × Width mm | 1304×993 |
