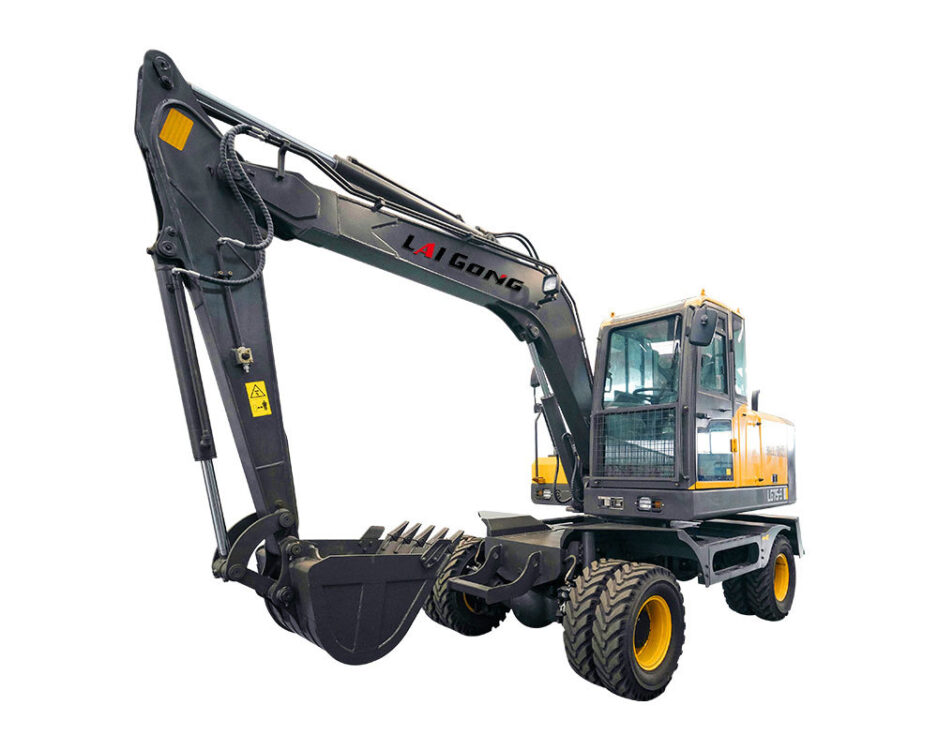

The JG75S is a wheel excavator built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a rated load of 7000kg, a 0.2-0.3m³ bucket and 48KW of engine power.
Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.
| Model | JG75S |
|---|---|
| Rated load | 7000kg |
| Bucket capacity | 0.2-0.3m³ |
| Engine power | 48KW |
| Engine | XINCHAI |
| Breakout force | 45KN |
| Boom length | 3300mm |
| Arm length | 1850mm |
| Max. digging reach | 6400mm |
| Max. digging depth | 3300mm |
| Max. digging height | 6870mm |
| Max. dumping height | 4860mm |
| Back-end radius of gyration | 1820mm |
| (Length*width*height) Transport dimensions | 5800*2100*2850mm |
| Axle base | 2400mm |
| Wheel base (front/rear) | 1660mm/1580mm |
| Ground clearance of counterweight | 1060mm |
| Min. ground clearance | 285mm |
| Angle of rotation | 360° |
| Rated speed | 2200r/min |
| Hydraulic system working pressure | 20Mpa |
| Hydranlic system flow | 110L/min |
| Metering gear/Variable piston pump | 2*25ml/r |
| Max. hauling force | 45KN |
| Walking speed | 25km/h |
| Grade climbing ability | 58%/30° |
| Tyre model | 7.50-16 |
| Swing overload pressure | 20Mpa |
| Full circle swinging time | 5.5s |
| Fuel quantity | ≥4L/h |
| Fuel tank capacity | 110L |
| Hydraulic oil tank capacity | 110L |
