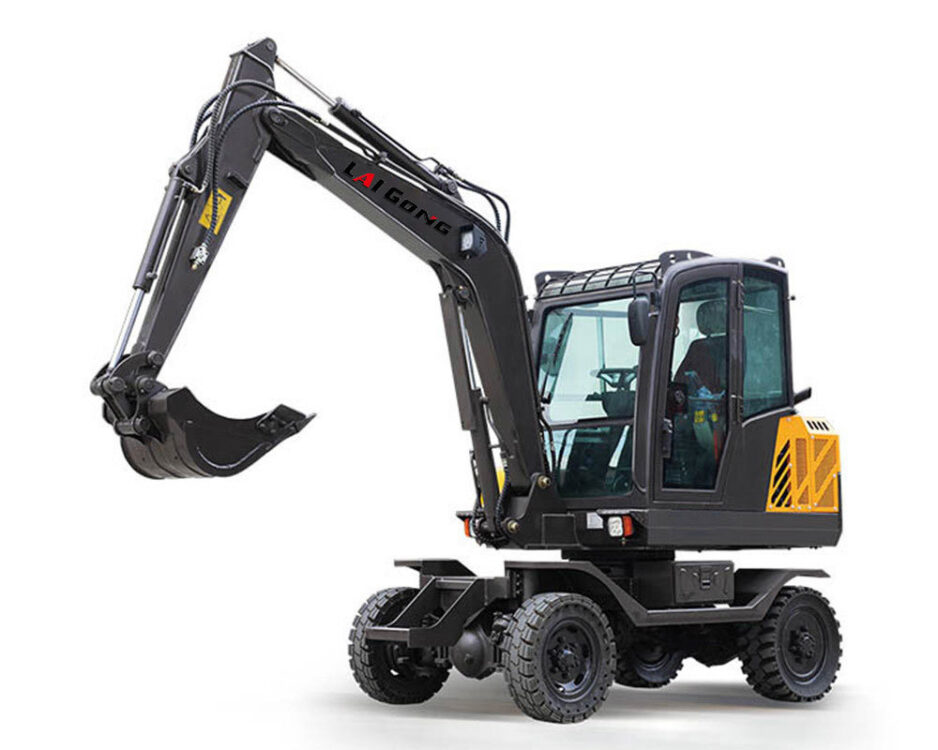

The JG50S is a wheel excavator built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a rated load of 4500kg, a 0.12m³ bucket and 30kw of engine power.
Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.
| Model | JG50S |
|---|---|
| Rated load | 4500kg |
| Bucket capacity | 0.12m³ |
| Engine power | 30kw |
| Engine | XINCHAI |
| Breakout force | 20KN |
| Boom length | 2650mm |
| Arm length | 1600mm |
| Max. digging reach | 5700mm |
| Max. digging depth | 2380mm |
| Max. digging height | 5480mm |
| Max. dumping height | 3800mm |
| Back-end radius of gyration | 1460mm |
| (Length*width*height) Transport dimensions | 5350*1500*2680mm |
| Axle base | 2000mm |
| Wheel base (front/rear) | 1270mm |
| Ground clearance of counterweight | 920mm |
| Min. ground clearance | 270mm |
| Angle of rotation | 360° |
| Rated speed | 2200r/min |
| Hydraulic system working pressure | 21Mpa |
| Hydranlic system flow | 95L/min |
| Metering gear/Variable piston pump | 45ml/r |
| Max. hauling force | 40KN |
| Walking speed | 15km/h |
| Grade climbing ability | 58%/30° |
| Tyre model | 28*9-15(7.00) |
| Swing overload pressure | 16Mpa |
| Full circle swinging time | 6s |
| Fuel quantity | ≥3L/h |
| Fuel tank capacity | 45L |
| Hydraulic oil tank capacity | 55L |
Required configuration step
Accessory selection is completed in Build your machine so compatibility, pricing, job requirements and contact details stay in one configuration.
Tell us the port, the quantity and the jobs the machine has to do. We reply within one working day with a price and lead time.
Enquiry about: JG50S Wheel Excavator
Tell us the machine, the port and the quantity. We reply within one working day.
