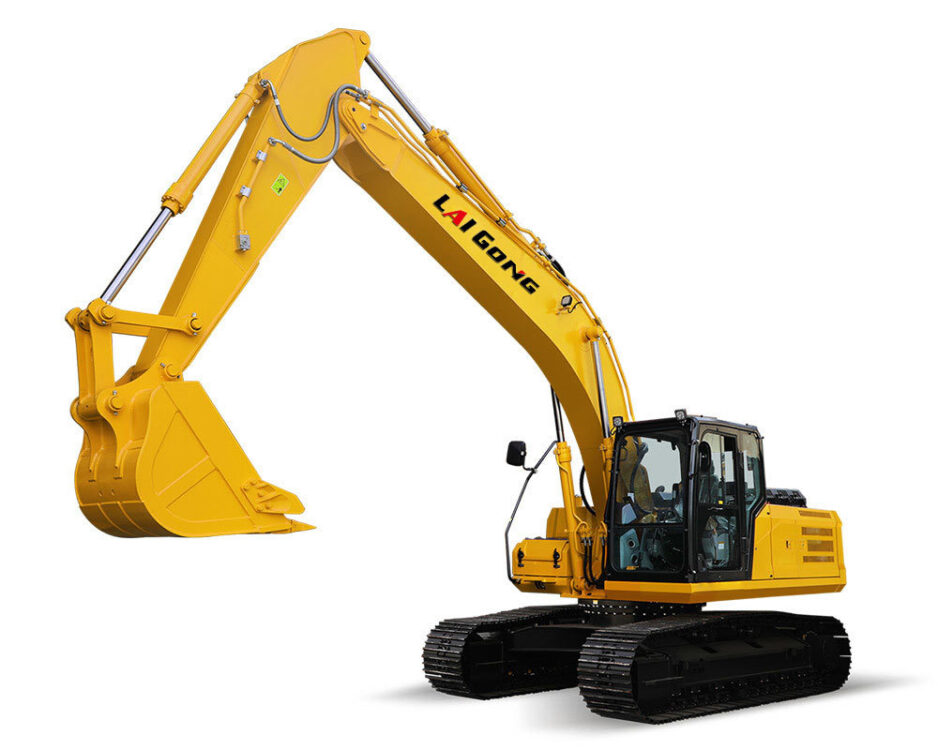

The JG230L is a crawler excavator built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines a rated load of 22300kg, a 1.2m³ bucket and 112KW of engine power.
Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.
| Model | JG230L |
|---|---|
| Rated load | 22300kg |
| Bucket capacity | 1.2m³ |
| Engine power | 112KW |
| Engine | Cummins |
| Turning radius | 3560mm |
| Boom length | 5700mm |
| Arm length | 2900mm |
| Max. digging radius | 9873mm |
| Max. digging depth | 6592mm |
| Max. vertical mining depth | 3929mm |
| Max. digging height | 9616mm |
| Max. unloding height | 6830mm |
| The radius of the end of gyration platform | 2794mm |
| Length*width*height | 9600*2990*3000mm |
| Axle base | 3635mm |
| Track gauge | 2400mm |
| Belt width | 600mm |
| Total width of the car | 2990mm |
| Total length of walking mechanism | 4440mm |
| The total width of belt off | 2980mm |
| Ground clearance of counterweight | 1096mm |
| Min. ground clearance | 475mm |
| Angle of rotation | 360° |
| Rotary speed | 10.7min |
| Walking speed (high speed/ low speed) | 5.9-3.2km/h |
| Ground specific pressure | 43.5kpa |
| Climbing ability | 70% |
| Digging force | 81.3KN |
