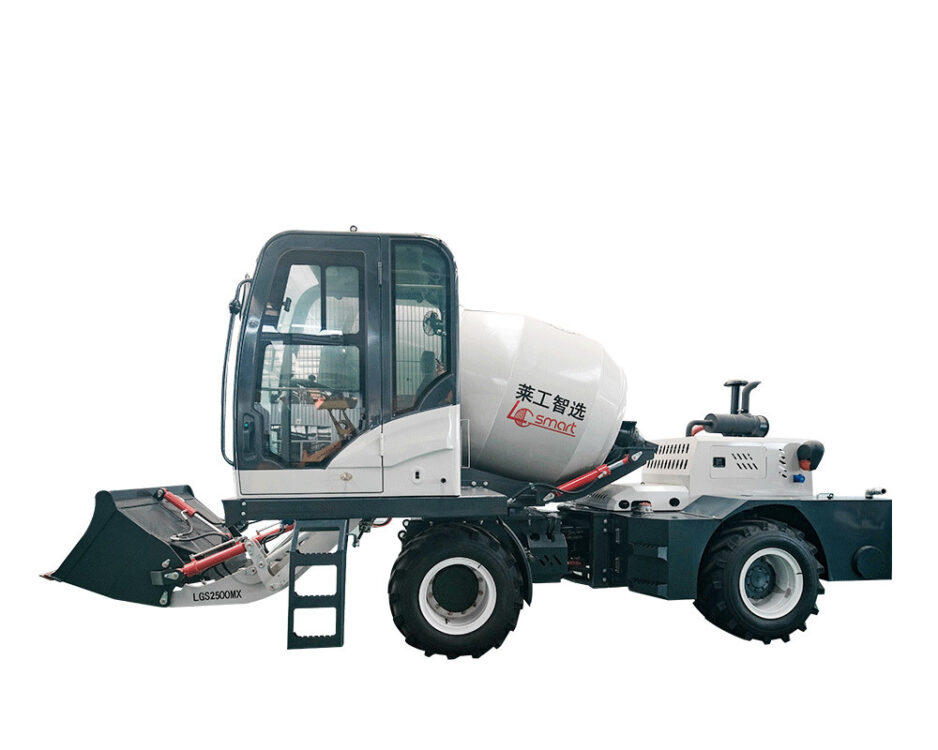

The H25 is a self-loading mixer built by Shandong LaiGong Machinery for contractors, farms, quarries and municipal fleets. It combines 78 of engine power.
Every machine is factory tested before shipping and supported by our overseas parts network. Tell us your application and we will confirm the right configuration, attachments and shipping terms for your market.
| Model | H25 |
|---|---|
| Engine power | 78 |
| Engine | Yuchai4102T |
| Geometrical Drum Volume(m³) | 4 |
| Drum Rotation Speed(r/min) | 20 |
| Concrete Produced As(m³/drum) | 2.6 |
| Length*Width*Height(mm) | 7040*2733*3091 |
| Curb Weight(kg) | 6500 |
| Maximum Speed(km/h) | 35 |
| Axle Base(mm) | 2570 |
| Max Gradeability(°) | 40 |
| Drive Form | 4x4 |
| Min Ground clearance(mm) | 280 |
| Gearbox Mode | JBJ-278 |
| Gear Shift | forward-4; back-4 |
| Engine Oil Capacity (L) | 13 |
| Hydraulic Oil Capacity (L) | 120 |
| Fuel Tank (L) | 120 |
| Water Tank (L) | 750 |
| Reduoer | 3F-130K |
| Motor | BMS-200 |
